The device is fully powered and free to choose the heat source. The air dryer is fully supplied. The basic types include filters, heaters, feeders, drying tubes, fans and cyclones. Customers can install dust collectors and other auxiliary equipment according to the actual situation.

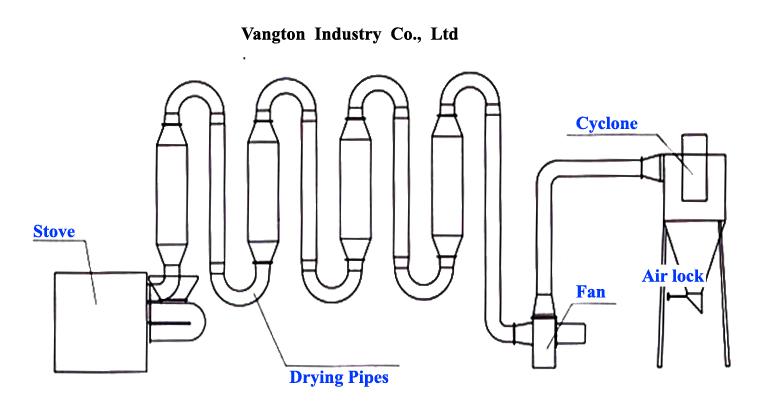

Wet raw materials enter the dryer at the same time through a conveyor belt and humid fresh air. They are completely mixed. Due to the large heat exchange area, the purpose of evaporation and drying can be achieved in a short time. The dried product is discharged from the cyclone. A small amount of dust can be collected and used in a cyclone or bag filter.

The air-flow dryer is an intermittent, high thermal efficiency, high speed, continuous and instantaneous drying device. Although suitable for drying a variety of raw materials, there are large differences between raw materials, but in order to choose the drying equipment that customers expect, we provide technical advice and provide installation and layout solutions.
