Vertical Pellet Machine         Gear Box Pellet Machine         Horizontal Pellet Machine         Flat Die Pellet Machine

LPM series Pellet Machine can be used for pressing sawdust, rice husk, sunflower seed shell, peanut shell, melon shell, craps of branches, trunk, bark, other wood materials, crop straw, eucalyptus, palm fiber, coffee shell, coconut shell and so on.

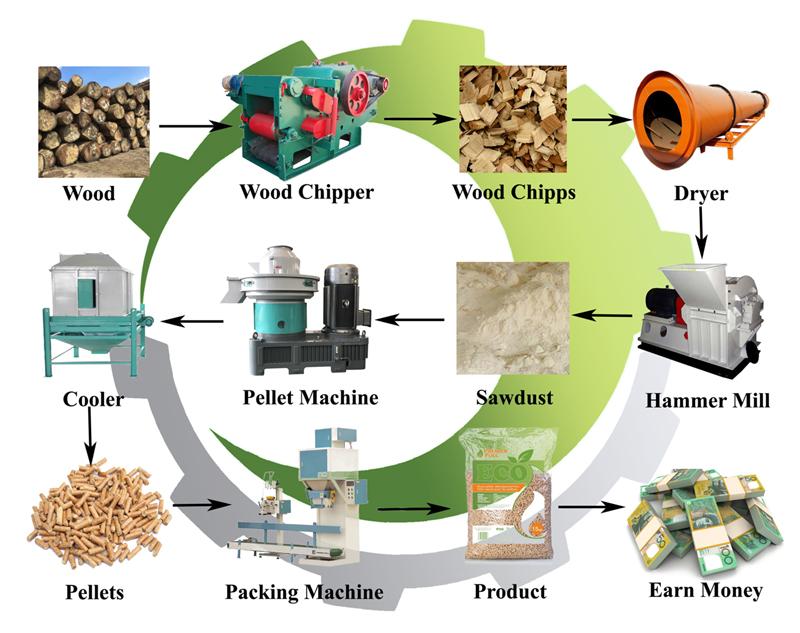

Pellet Making Process

1. Chipping, and Crushing process – make raw materials into small size.
2. Drying process – reduce the moisture to 15%.
3. Pelletizing process – press the materials to pellets.
4. Cooling and screening process – reduce the temperature to room temperature and water moisture to 12%.
5. Packing process – pack pellets into bags.
​

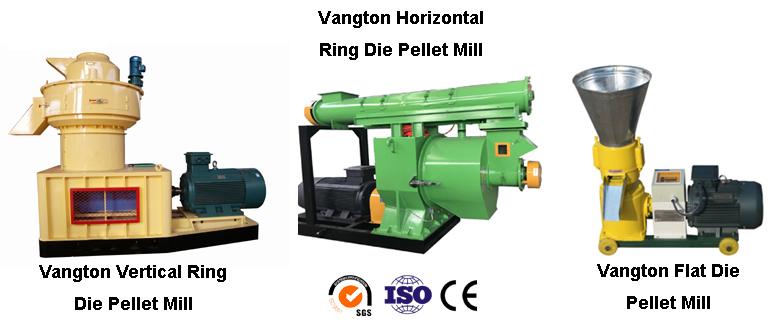

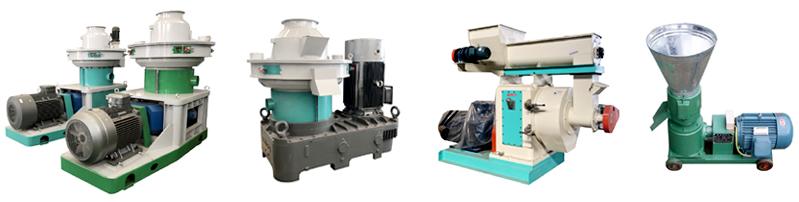

Different structures of pellet machines

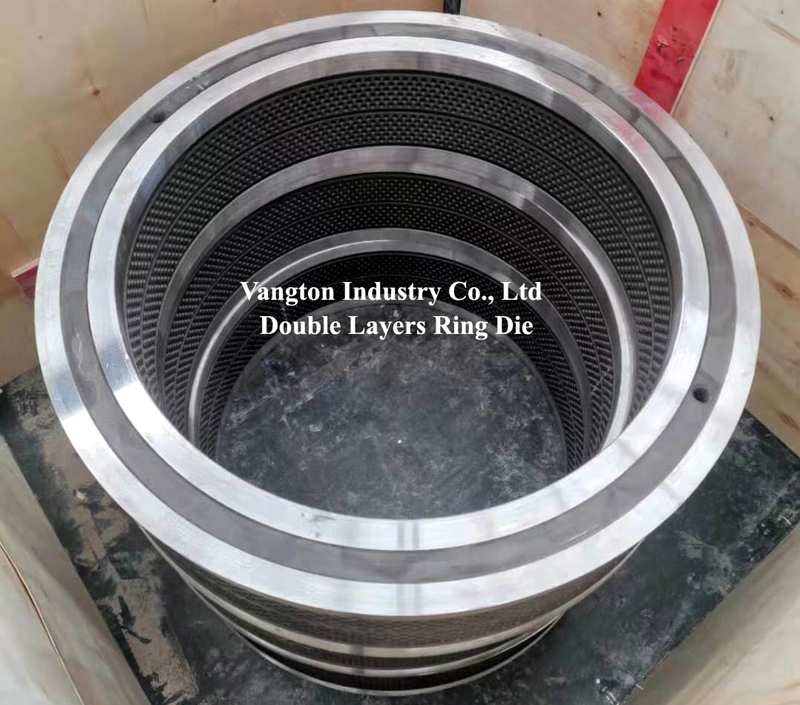

Why we choose ring die pellet machine to make wood pellets instead of Flat Die Pellet Mill

1. Biomass pellets are made as a fuel, need a big capacity. Ring die pellet machines are big and can produce large quantity.
2. Flat die pellet mill mainly for feeding. Ring die pellet machines are more powerful. They are more suitable for processing wood and palm fiber.
3. A set of ring die pellet machine has longer service life than flat die pellet mill.
4. The  products of ring die pellet machine have higher density and smoother surface, as the pressure of ting die pellet machine is higher.
